Laboratory Testing

Fiber-Reinforced Concrete Testing

Fiber-Reinforced Concrete (FRC) is gaining attention as an effective way to improve the performance of concrete. Fibers are currently being specified in tunneling, bridge decks, pavements, loading docks, thin unbonded overlays, concrete pads, and concrete slabs. These applications of fiber-reinforced concrete are becoming increasingly popular and are exhibiting excellent performance.

The characteristics of the fiber reinforced concrete depend on the fiber material, amount, geometry, distribution, orientation, and densities of the fibers used. Fibers are added to fresh concrete during the batching and mixing process to allow them to be equally distributed throughout the concrete.

Types of Fibers

  • Steel
  • Glass
  • Synthetic
  • Natural

These fibers are often used in concrete to control plastic shrinkage cracking and drying shrinkage cracking. Some types of fibers can improve abrasion resistance, residual strength, toughness and shatter resistance of the concrete. They may also lower the permeability of concrete thus reducing the amount of bleed water.


SGS TEC works closely with ASTM and FRCA in the development of test methods, testing guidelines and specifications for:

  • Fiber-Reinforced Concrete
  • Industrial Floor Slabs
  • Ultra High Performance Concrete (UHPC)
  • Glass Fiber Reinforced Concrete (GFRC)
  • Precast Tunnel Segments
  • Shotcrete

Contact an expert today to find out more.

ASTM C1581 – Ring Shrinkage Test

Test Methods

ASTM C947 Standard Test Method for Flexural Properties of Thin Section Glass Fiber Reinforced Concrete (Using Simple Beam With Third Point Loading)
ASTM C995Time of Flow of Fiber-Reinforce Concrete Through Inverted Slump Cone
ASTM C1116Specification for Fiber-Reinforced Concrete
ASTM C1140Preparing and Testing Specimens from Shotcrete Test Panels
ASTM C1230 Standard Test Method for Performing Tension Tests on Glass Fiber Reinforced Concrete (GFRC) Bonding Pads
ASTM C1018Flexural Performance of Fiber-Reinforced Concrete (Using Beam With Third-PointLoading) (Withdrawn 2006)
ASTM C1385Sampling Materials for Shotcrete
ASTM C1399Obtaining Average Residual-Strength of Fiber-Reinforced Concrete
ASTM C1436Materials for Shotcrete
ASTM C1480Packaged, Pre-Blended, Combined Materials for Use in Wet or Dry Shotcrete Application
ASTM C1550Standard Test Method for Flexural Toughness of Fiber Reinforced Concrete (Using Centrally Loaded Round Panel)

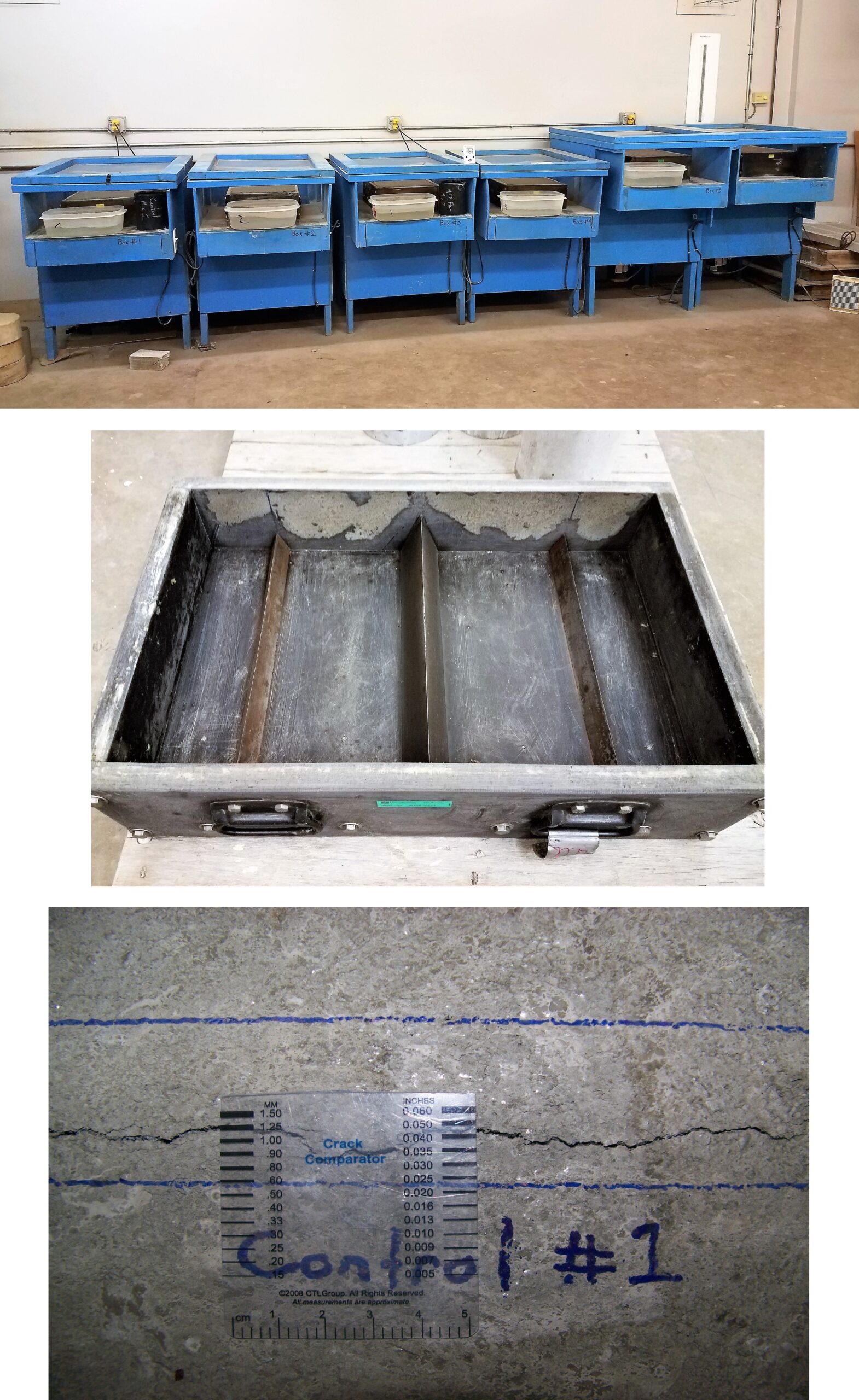

ASTM C1579Evaluating Plastic Shrinkage Cracking of Restrained Fiber Reinforced Concrete (Using a Steel Form Insert)
ASTM C1581Standard Test Method for Determining Age at Cracking and Induced Tensile Stress Characteristics of Mortar and Concrete under Restrained Shrinkage
ASTM C1604Obtaining and Testing Drilled Cores of Shotcrete

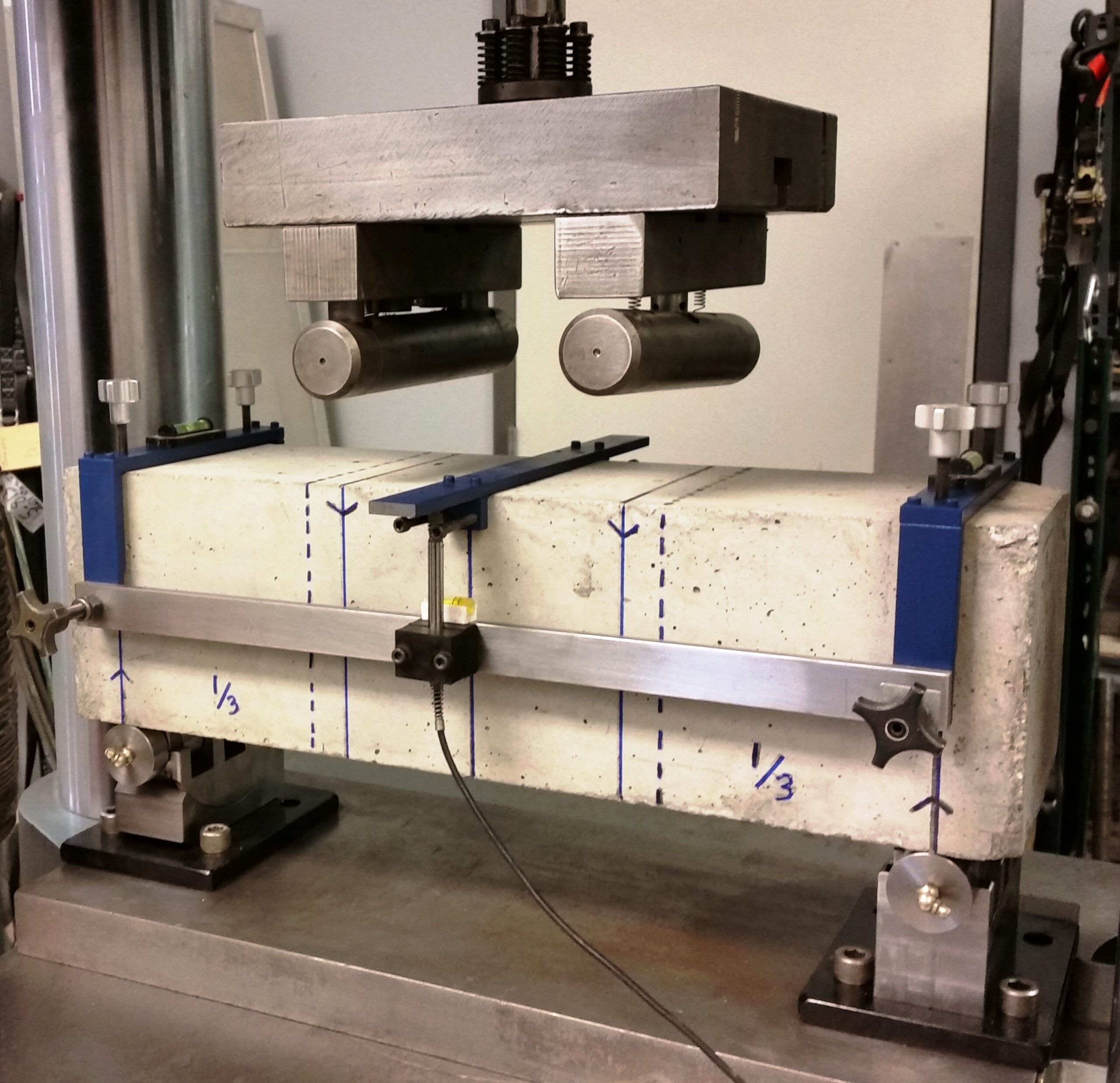

ASTM C1609Flexural Performance of Fiber-Reinforced Concrete (Using Beam With Third-Point Loading)
ICC-ES AC 32Acceptance Criteria for Concrete with Synthetic Fibers
ICC-ES AC 208Acceptance Criteria for Steel Fibers in Concrete
CRD-C65Standard Test Method for Flexural Toughness and First-Crack Strength of Fiber-Reinforced Concrete
CRD-C67Standard Test Method for Time of Flow of Fiber-Reinforced Concrete Through Inverted Slump Cone
AC383Polyolefin Chopped Strands for Use in Concrete
EN14651Flexural/Tensile Strength of FRC using Notched Beams
